Frameless only

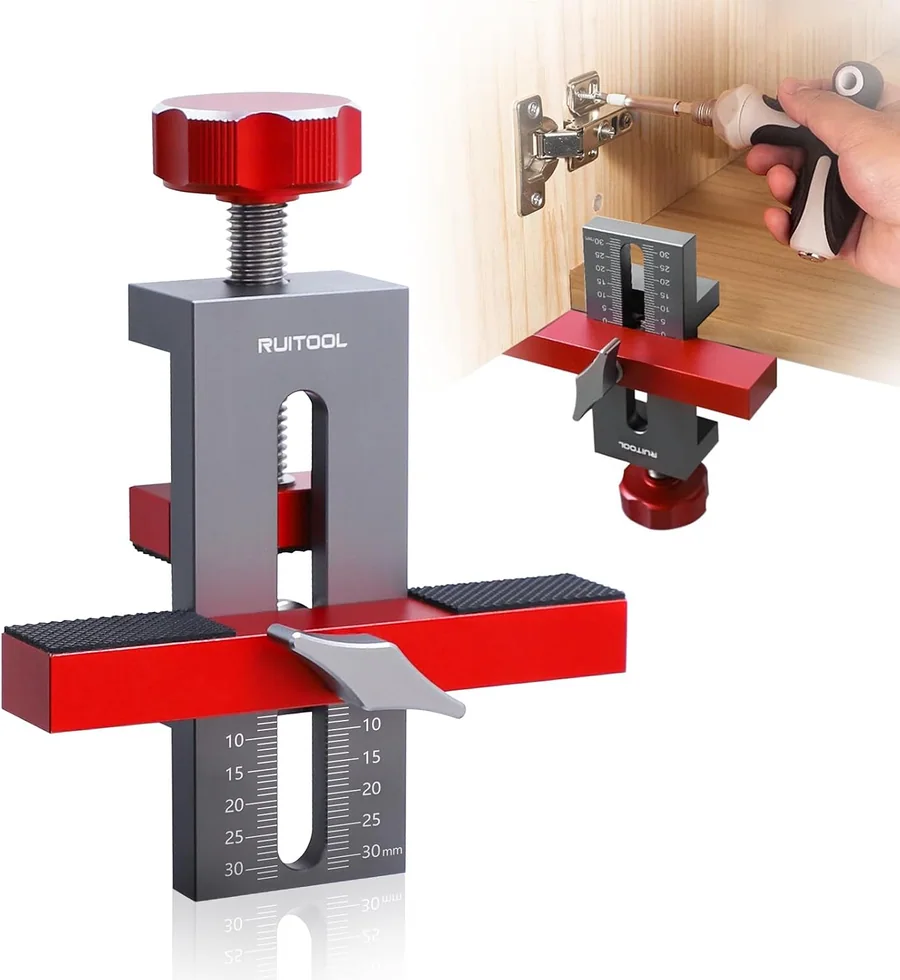

RUITOOL Cabinet Door Mounting Jig for Frameless Cabinets
Frameless only · Clamps 7 to 40 mm
from$29.59
Side by side
Compare RUITOOL jigs, saws and nippers
Three choices come up again and again: which door jig, which saw, which nipper. The tables put the numbers next to each other.
Door jigs
Door jigs by the cabinet
Start with the type of cabinet. The clamping range tells you if the jig will grip your frame or panel.
| Jig | Cabinet type | Clamping range | Height adjustment | From |
|---|---|---|---|---|
| RUITOOL 3-in-1 Door Mounting Jig | Face frame and frameless | 3/8 to 2-3/4 in (9 to 71 mm) | 93 mm in all: 63 mm up, 30 mm down | $36.47 |
| RUITOOL Frameless Door Mounting Jig | Frameless only | 7 to 40 mm (0.28 to 1.57 in) | 0 to 64 mm on the standard model, 0 to 55 mm on the 2-in-1 | $29.59 |
| RUITOOL 35mm Hinge Jig | Any door up to 38 mm thick | Up to 38 mm | Door supports included | $42.23 |
Shelf pins
Shelf pins by the edge
Both shelf pin jigs set a column of holes 37, 50 or 64 mm from the panel edge. They differ in how many holes they drill in one pass.
- 37 mmfrom the panel edge
- 50 mmfrom the panel edge
- 64 mmfrom the panel edge
- 1-1/4 inbetween holes on the 7-hole jig
| Product | Holes per pass | Pin sizes | From |
|---|---|---|---|
| RUITOOL 7-Hole Shelf Pin & Hinge Jig | 7, spaced 1-1/4 in | 1/4 in (6 mm) and 5 mm | $42.49 |

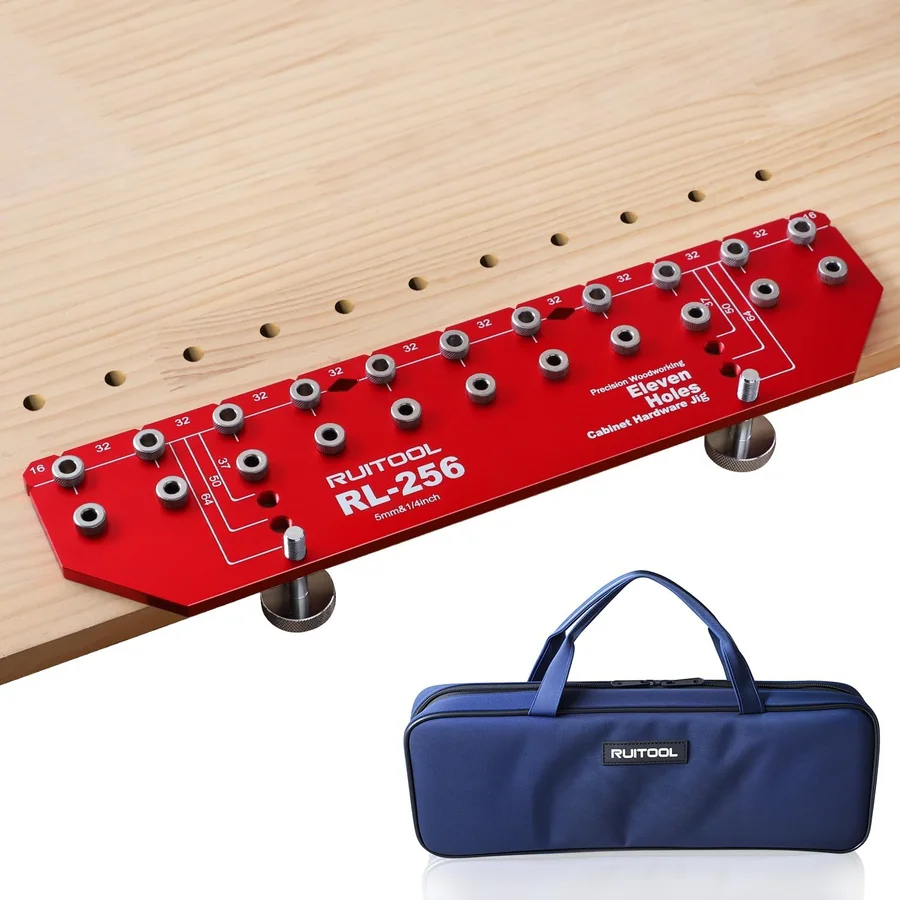

| RUITOOL 11-Hole Shelf Pin Jig | 11 | 1/4 in and 5 mm, with a bit and bushings for each | $53.99 |
| RUITOOL Shelf Pin Jig Sleeves | Accessory | 7, for 1/4 in bits | $9.99 |
| RUITOOL Drill Stop Collars | Accessory | Bits 5/64 to 3/16 in, 30 to 34 x 20 mm | $19.99 |
Cabinet jigs
RUITOOL jigs for the cabinet
Pair, with toggle clamps

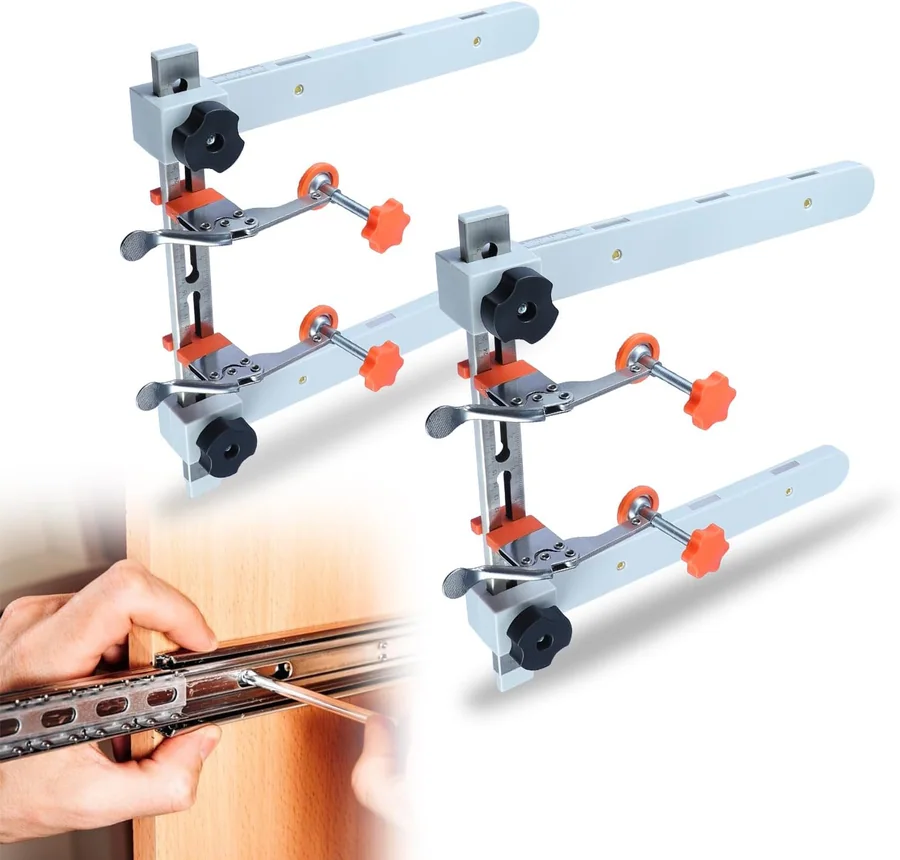

RUITOOL Drawer Slide Jig with Magnetic Support Arms
Holds slides up to 24 in · Inch and metric scales
$43.67
Teeth per inch
Saws by the tooth
The drawing shows one inch of each tooth pattern at the same scale. More teeth in the inch means a finer, slower cut.
- 6 TPICoarse
- 10 TPICoarse
- 12 TPIMedium
- 14 TPIMedium
- 17 TPIFine
- 18 TPIFine
| Saw | Blade | TPI | From |
|---|---|---|---|

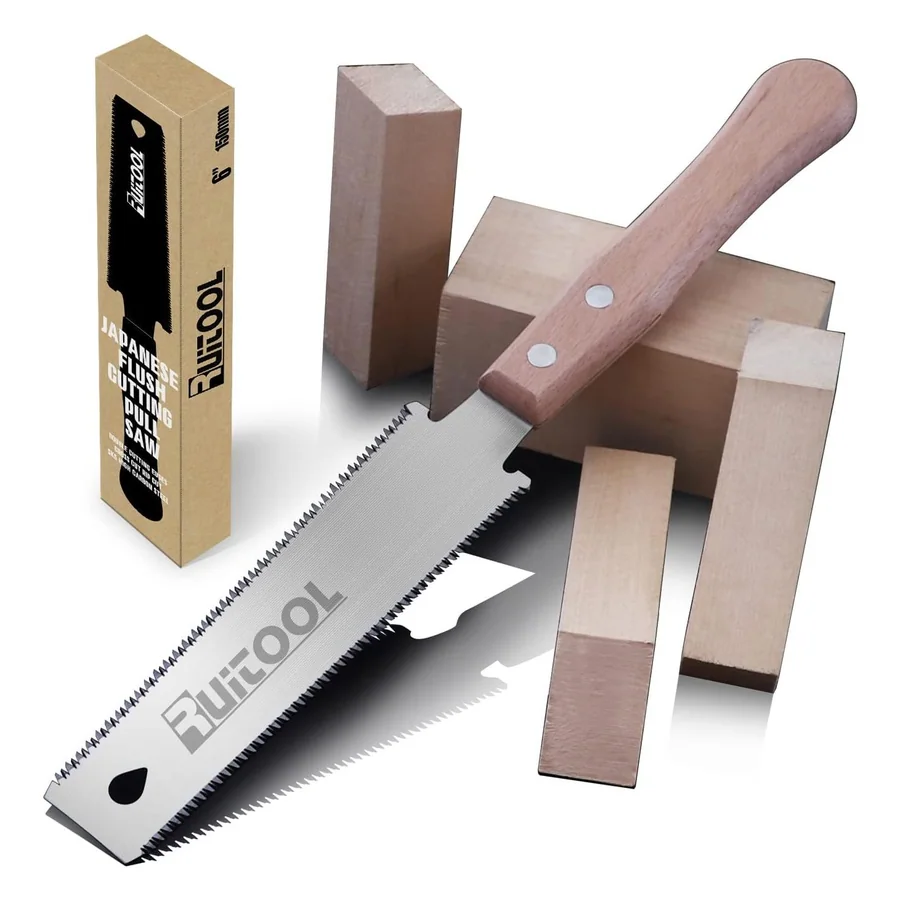

| RUITOOL 6 Inch Ryoba Saw | 6 in, SK5 high-carbon steel | 14 / 17 | $14.99 |

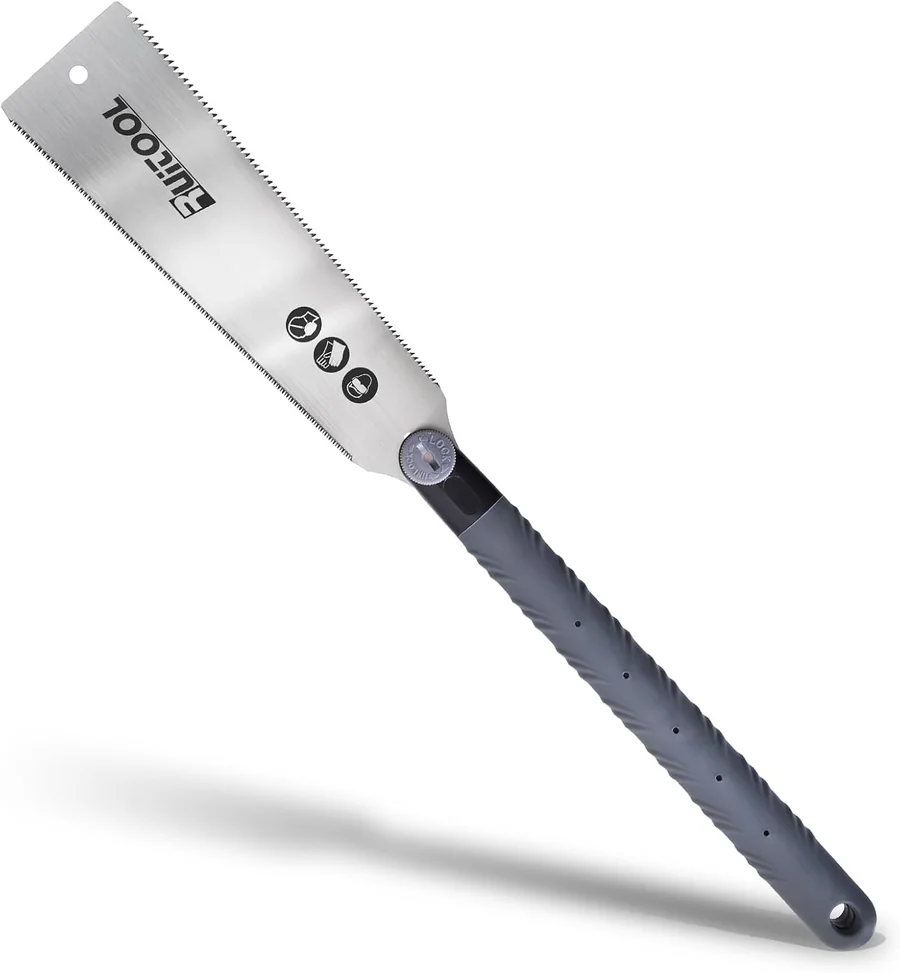

| RUITOOL 10 Inch Ryoba Saw | 10 in, SK5 steel with hardened teeth | 6-10 / 18 | $21.59 |
| RUITOOL Ryoba Saw Set | SK5 high-carbon steel | 10 / 14 / 17 / 18 | $33.99 |

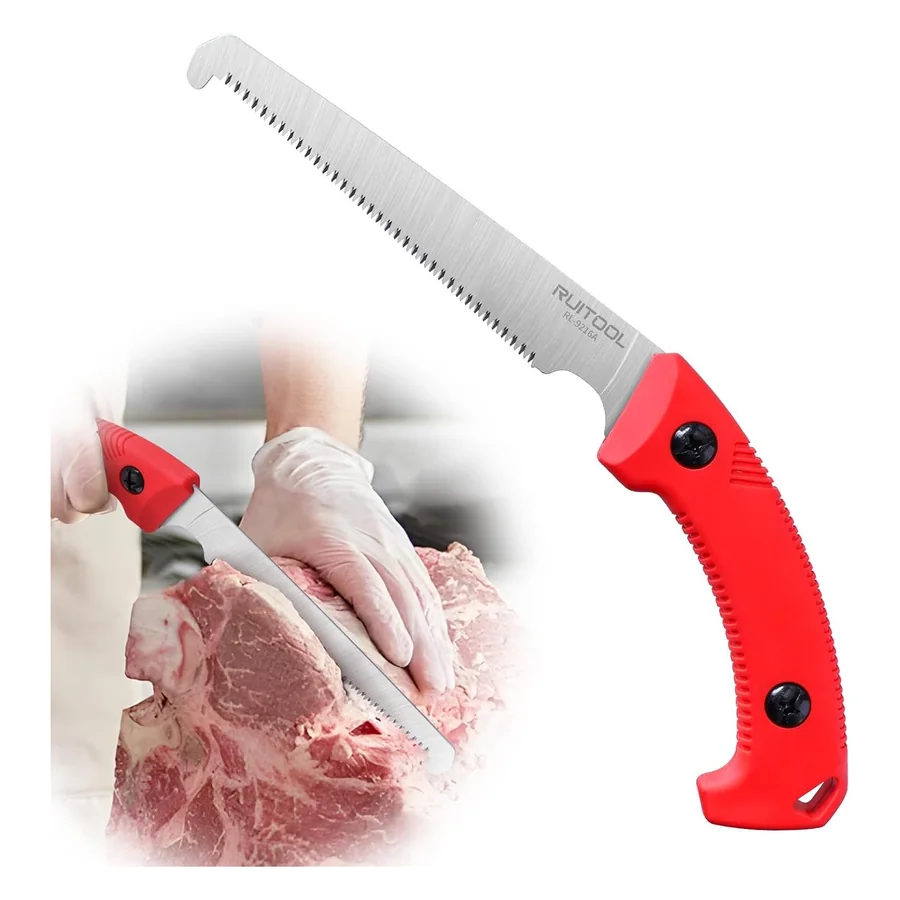

| RUITOOL Meat & Bone Saw | 7 in, high-carbon steel, triple-ground teeth | 12 | $26.99 |
Hand saws
RUITOOL saws on the pull
Model nippers
Nippers by the grade
All of them have a single blade. The grade tells you how thin it is.
| Product | Grade | Blade | Will not cut | From |
|---|---|---|---|---|

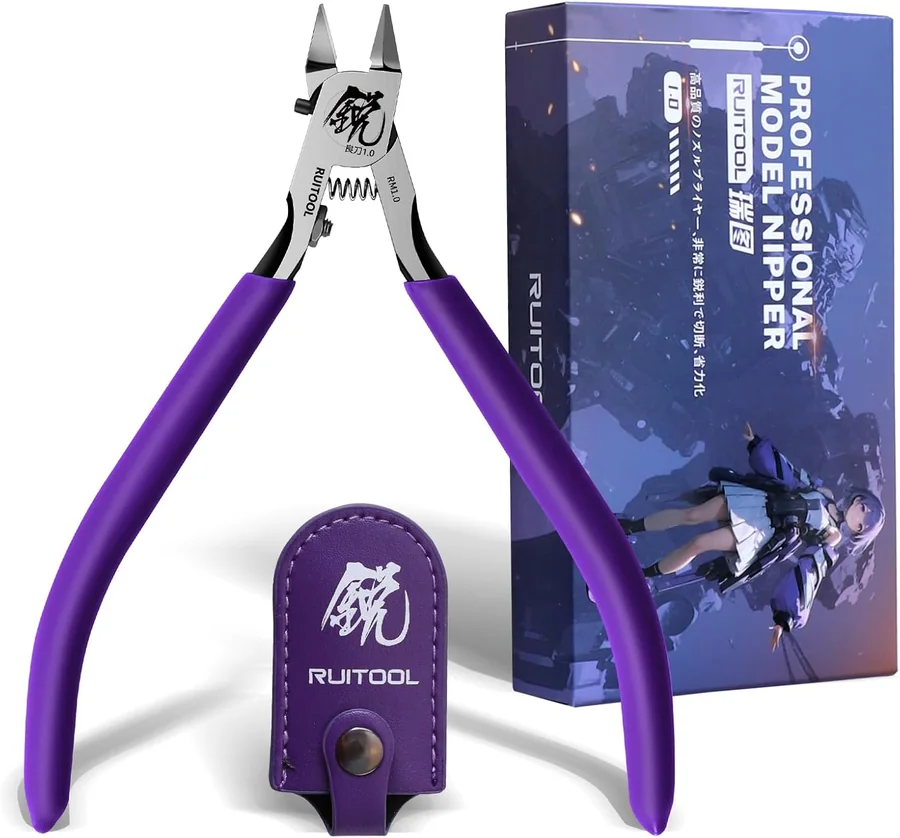

| RUITOOL Model Nippers RM1.0 / RM3.0 | 4.7 in | Single edge, thin | Metal, clear hard plastic and thick runners | $18.99 |

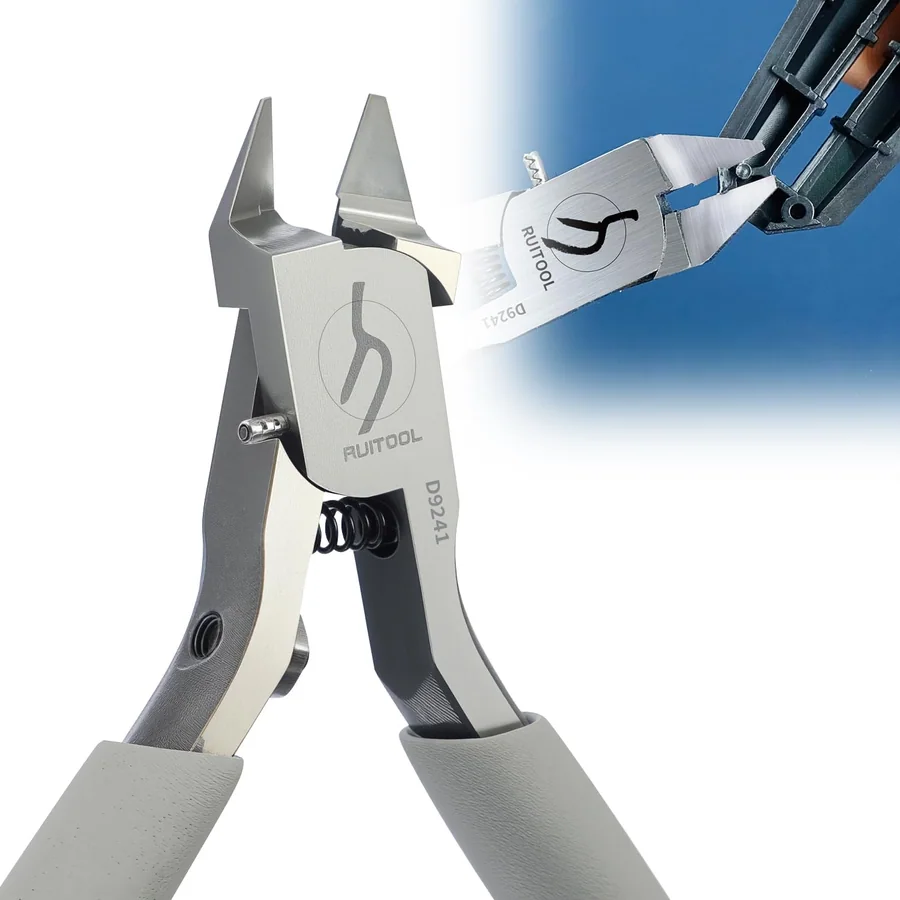

| RUITOOL Compact Model Nipper | Gray, compact | Single edge, chromium-vanadium steel | Metal, glass-fiber reinforced plastic, hardened resin | $14.99 |
| RUITOOL Model Nippers RM5.0 | RM5.0, 4.65 in | Single edge, secondary-ground, chrome vanadium steel | Clear PS, hard runners and plastic thicker than 3 mm | $59.99 |
| RUITOOL Model Tools Kit | Boxed set | Single blade | See the product page | $89.99 |
Nippers
RUITOOL nippers for plastic kits
RM5.0, 4.65 in

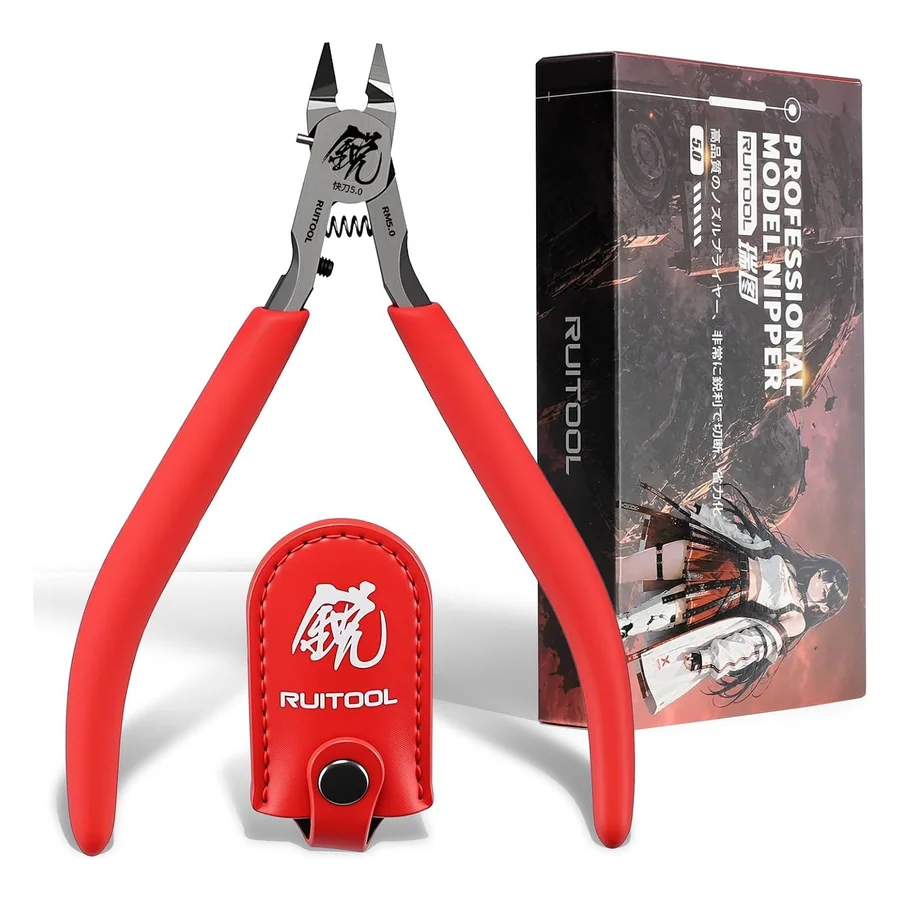

RUITOOL Single-Blade Model Nippers RM5.0
Secondary-ground blade · Plastic up to 3 mm
$59.99
