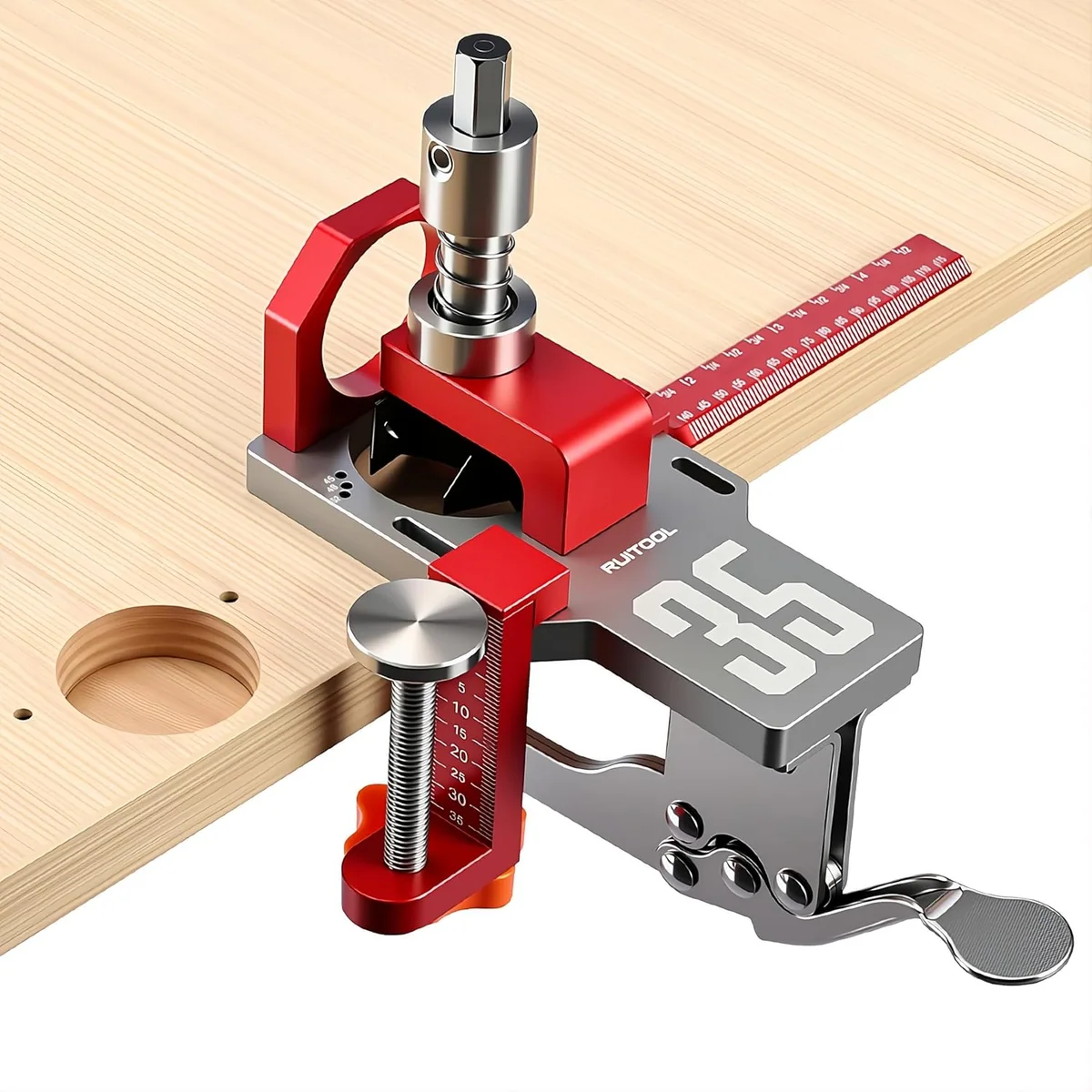

RUITOOL 35mm Concealed Hinge Jig System
$42.23
Hinge jig with door supports
A drilling guide for 35 mm hinge cups that also holds the door during mounting. One kit takes a door from bare panel to hung.
- Hinge cup
- 35 mm
- Edge margin
- 3, 4, 5 or 6 mm
- Pilot hole spacing
- 45, 48 or 52 mm
- Board thickness
- Up to 38 mm
Fits
- Standard 35 mm concealed hinges
- Doors and panels up to 38 mm thick
- Shop vacs with a 1-3/8 in port
Not for
- Hinges with a cup other than 35 mm
Checkout, payment and delivery happen with our retail partner. Price from our update of 1 October 2026. How we update prices
What it does
The 35mm Hinge Jig, in three points
Cup holes without layout
A snap-on ruler sets the position. Choose an edge margin of 3, 4, 5 or 6 mm and a pilot spacing of 45, 48 or 52 mm.
Clamped, not hand-held
The quick clamp holds boards up to 38 mm thick on rubber pads, so the bit enters square.
Dust goes to the vac
A 1-3/8 in port connects to a shop vac and pulls chips out of the cup as you drill.
Specifications
- Hinge cup
- 35 mm
- Edge margin
- 3, 4, 5 or 6 mm
- Pilot hole spacing
- 45, 48 or 52 mm
- Board thickness
- Up to 38 mm
- Dust port
- 1-3/8 in
- Body
- CNC aluminum with quick clamp and extension ruler
At the bench
Concealed hinges need a 35 mm cup at an exact distance from the door edge. A few millimeters off and the door binds or gaps. This jig clamps to the door, and its ruler sets the margin so every cup on a run of doors lands in the same place. The pilot holes for the hinge screws are guided too. When the cups are done, the detachable supports hold the door on the cabinet while you mount it.
