RUITOOL Cabinet Door Mounting Jig for Frameless Cabinets
$29.99
Selected: Standard model

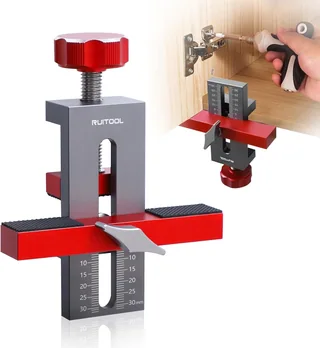

A compact door support for frameless cabinets only. It clamps to a side panel from 7 to 40 mm thick and holds the door while you fix the hinges.
- Cabinet type
- Frameless only
- Clamping range
- 7 to 40 mm (0.28 to 1.57 in)
- Height adjustment
- 0 to 64 mm on the standard model, 0 to 55 mm on the 2-in-1
- Body
- Aluminum alloy, rubber pads
Fits
- Frameless cabinet sides from 7 to 40 mm thick
Not for
- Face-frame cabinets
- Frameless panels thicker than 40 mm
Checkout, payment and delivery happen with our retail partner. Price from our update of 1 October 2026. How we update prices
What it does
The Frameless Door Mounting Jig, in three points
Made for frameless boxes
The clamp grips a plain panel edge between 7 and 40 mm. It is not shaped to step over a face frame.
Two models

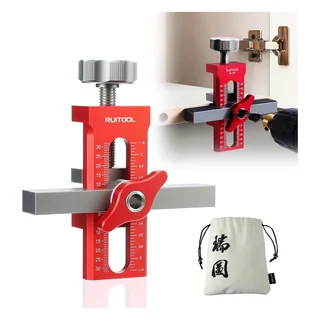

The standard model lifts a door 0 to 64 mm. The 2-in-1 lifts 0 to 55 mm and adds a drilling guide for push-to-open latches.
Small and light
The standard model is 3.62 in high and 4.45 in wide. It lives in an apron pocket between doors.
Specifications
- Cabinet type
- Frameless only
- Clamping range
- 7 to 40 mm (0.28 to 1.57 in)
- Height adjustment
- 0 to 64 mm on the standard model, 0 to 55 mm on the 2-in-1
- Body
- Aluminum alloy, rubber pads
- 2-in-1 model adds
- Drilling guide for push-to-open latches, 3 drills, 2 adapters, storage bag
- Versions
- Standard model / 2-in-1 model with latch drilling
At the bench
European-style cabinets have no frame, so the door hangs straight off the side panel. This jig clamps to that panel and gives the door a ledge to sit on. You turn the knob to raise or lower the door until the top lines up, then drive the hinge screws. The engraved scale lets you repeat the same height on the next door. The 2-in-1 model comes with three drills, two adapters and a bag.
Check before you buy
- Your cabinets are frameless.
- The side panel is between 7 and 40 mm thick.
- You know if you need latch drilling. Only the 2-in-1 model has it.
Limits
Pick another one if
Do not buy it for framed cabinets. The clamp cannot reach around a face frame, and our 3-in-1 jig exists for that case. Panels thicker than 40 mm are also out of range. Between the two models here, take the standard one for doors alone. Take the 2-in-1 if your doors use push-to-open latches.
Same bench
RUITOOL Cabinet Jigs
7 tools, from $9.99. Set them side by side in one table.
All 7 RUITOOL Cabinet JigsFrom the same bench
More RUITOOL tools
Tools that share a bench or a job with the Frameless Door Mounting Jig.
Face frame and frameless
RUITOOL 3-in-1 Cabinet Door Mounting Jig
Face frame + frameless · Clamps 3/8 to 2-3/4 in
$36.47
From buyers
What buyers say about the Frameless Door Mounting Jig
4.4 out of 5 from 137 ratings. Reviews word for word, with the critical ones left in.
Very well made but...
So I bought this for hanging doors on some very expensive "European" or faceless cabinets and they'll probably work great. While I was messing around with them at my own home I found they don't work on my cabinets because they don't fit the frame. Almost but not quite. Now they're in metric and that's fine & they are VERY well built, very solid construction so I'll keep them for that alone.
Does what it's supposed to do
Works really well. Would be nice if the opening for the clamp would go another 1" larger.
Questions
Frameless Door Mounting Jig: answers
Will it fit a face-frame cabinet?
No. It is made for frameless cabinets only. For framed cabinets, see our 3-in-1 door mounting jig.
What is the difference between the two models?
The standard model adjusts 0 to 64 mm and supports the door. The 2-in-1 adjusts 0 to 55 mm and also guides the drill for rebound latches, with drills and a bag included.
How thick a panel can it clamp?
From 7 to 40 mm, which is 0.28 to 1.57 in.
